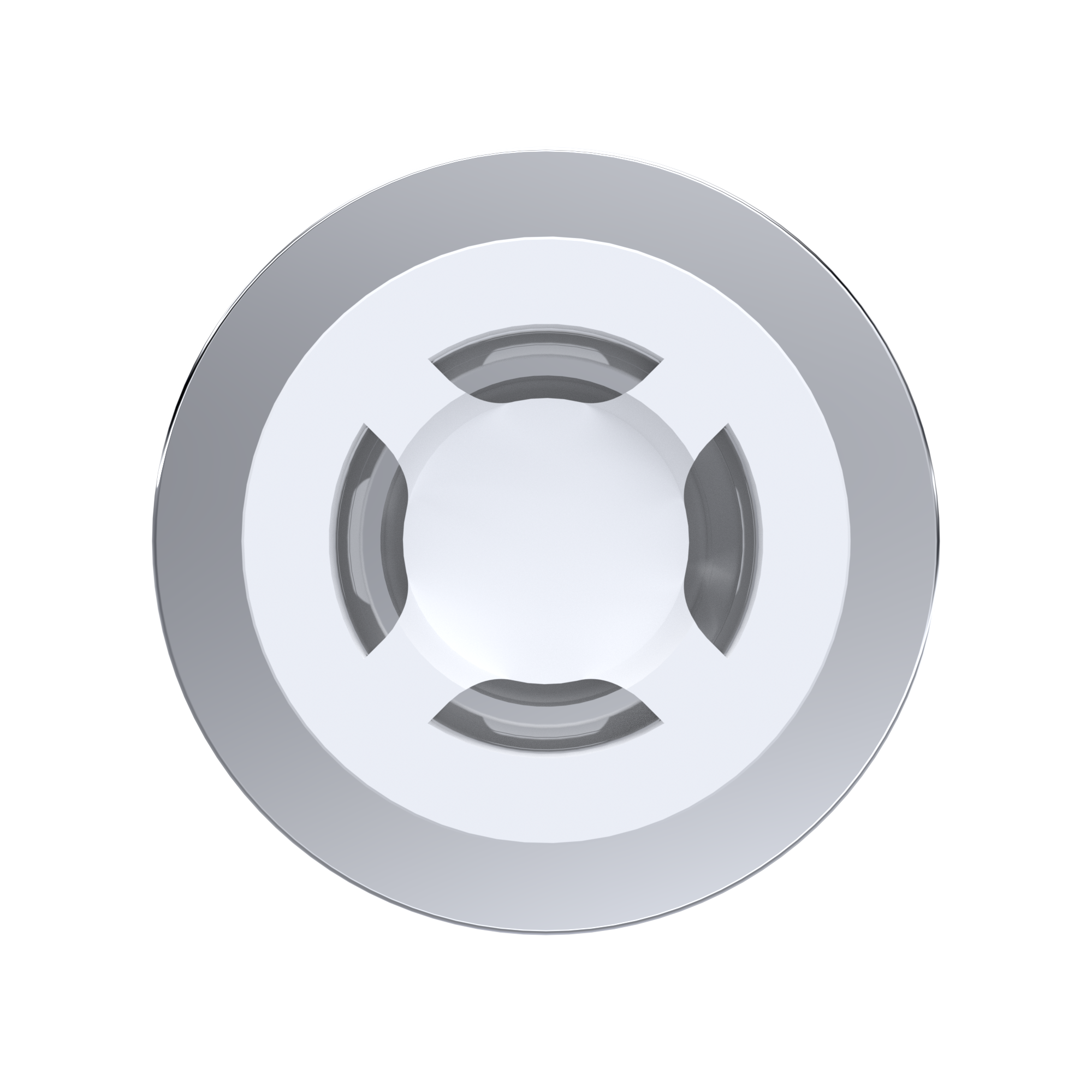

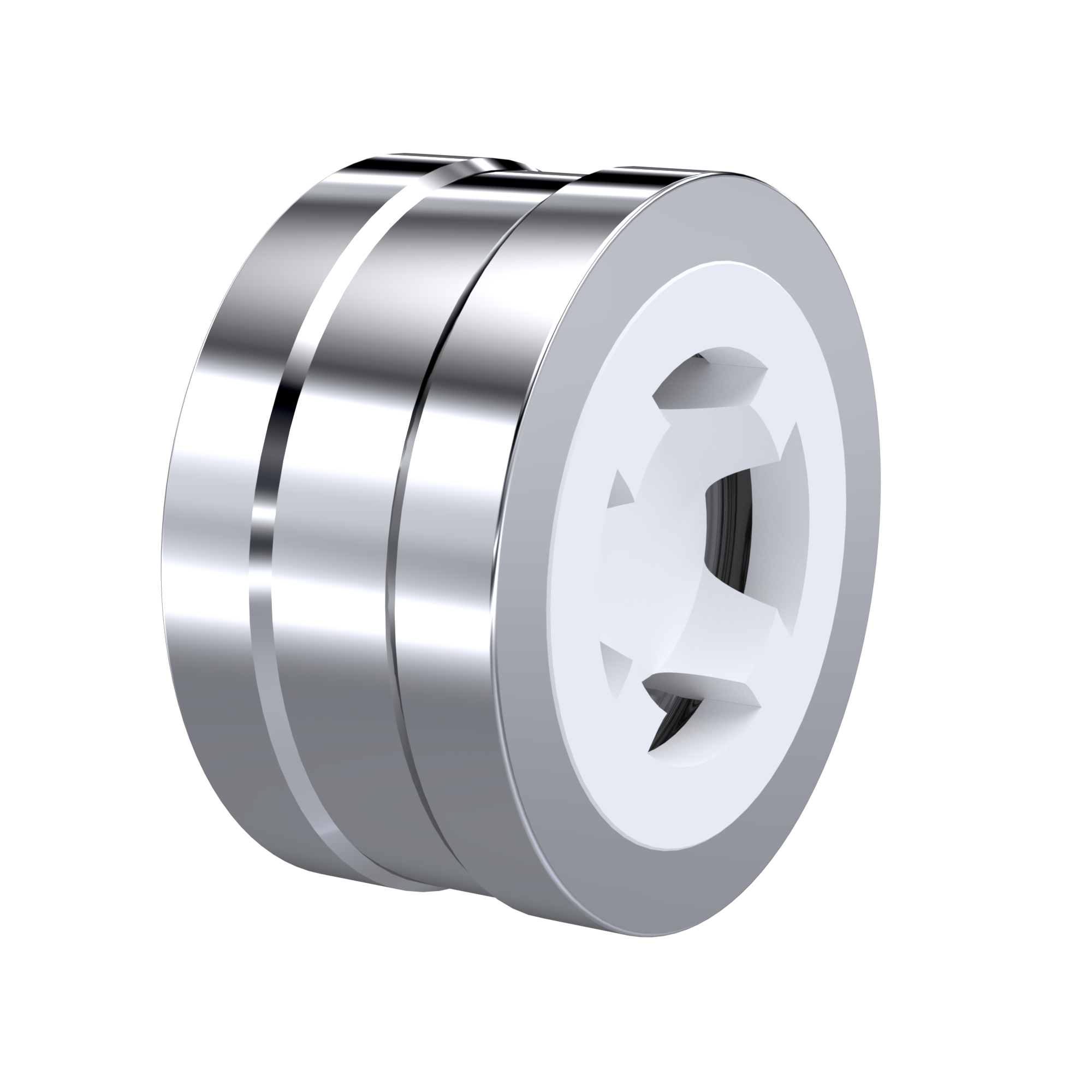

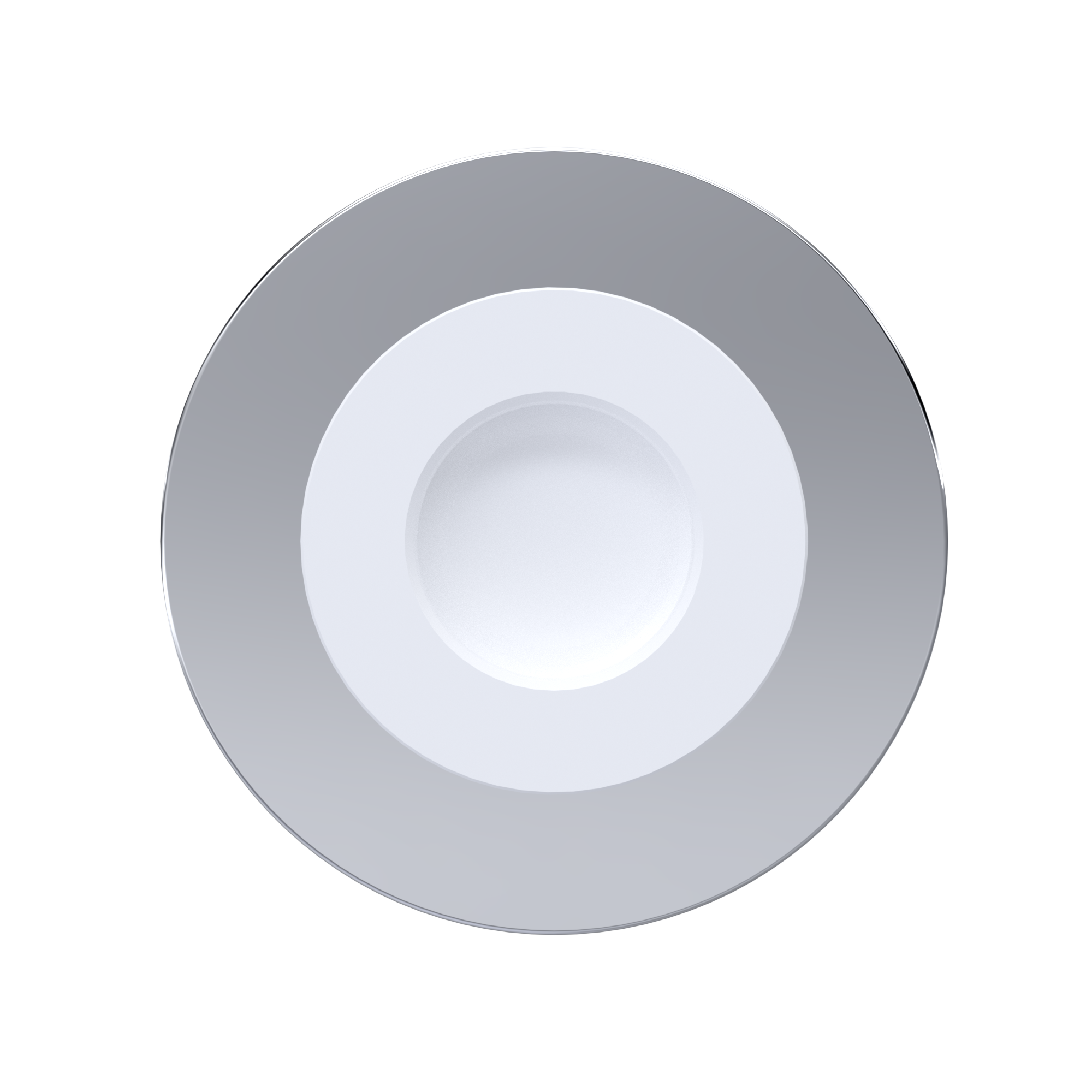

disco check valve DN25 - 1" inch Dichtung aus PTFE für liquid and gaseous media ANSI B 16.5 CL 150

product:	PTFE-check valve
type:	RV05
manufacturer:	NieRuf
design:	disco check valve
diameter:	DN25 - 1" inch
body material:	stainless steel 1.4301
disc material:	PTFE + 25% fiberglass
seal:	PTFE
tightness acc. to DIN EN 12266:	leak rate D
temperature:	-200°C up to +160°C
flange:	ANSI B 16.5 CL 150
pressure range:	0 - 10 bar
Kv-value in m3/h:	11,14
spring material:	Hastelloy C4, PFA coated
media:	liquid and gaseous media
installation position:	any position
product feature:	face to face according DIN EN 558 row 52

Expand Collapse

Bei Bestellung ab einem Warenwert von 3.000,– Euro erhalten Sie von uns einen Rabatt von 5%.

Jetzt Rabattcode einlösen!

XY12349876Z

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

PTFE-check valve DN25 - 1" inch ANSI B 16.5 CL 150

Article no. : RV05010305
PTFE-check valve RV05 NieRuf disco check valve DN25 - 1" inch stainless steel 1.4301 PTFE + 25% fiberglass PTFE leak rate D -200°C up to +160°C ANSI B 16.5 CL 150 0 - 10 bar 11,14 Hastelloy C4, PFA coated liquid and gaseous media any position face to product:
type:
manufacturer:
design:
diameter:
body material:
disc material:
seal:
tightness acc. to DIN EN 12266:
temperature:
flange:
pressure range:
Kv-value in m3/h:
spring material:
media:
installation position:
product feature: face according DIN EN 558 row 52
