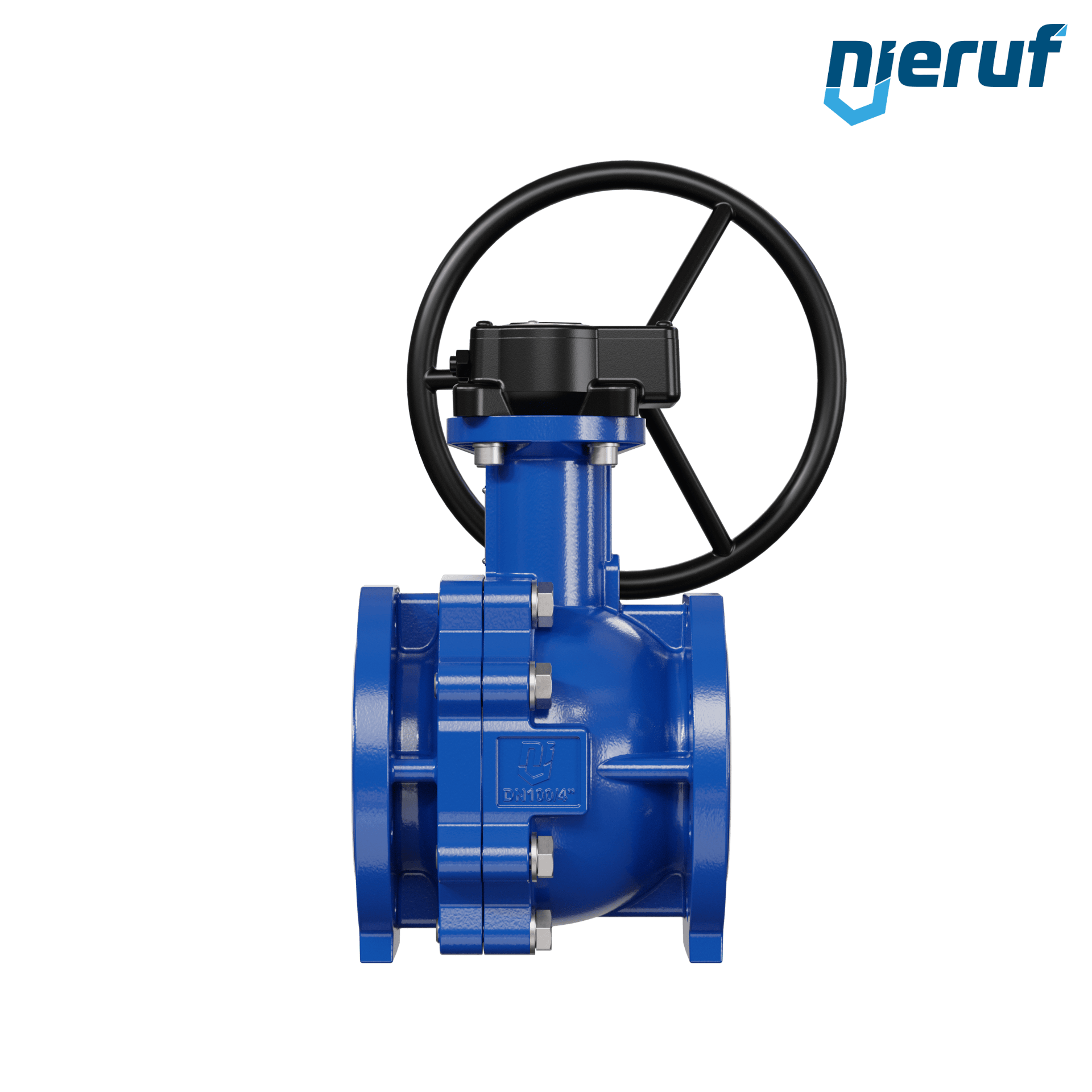

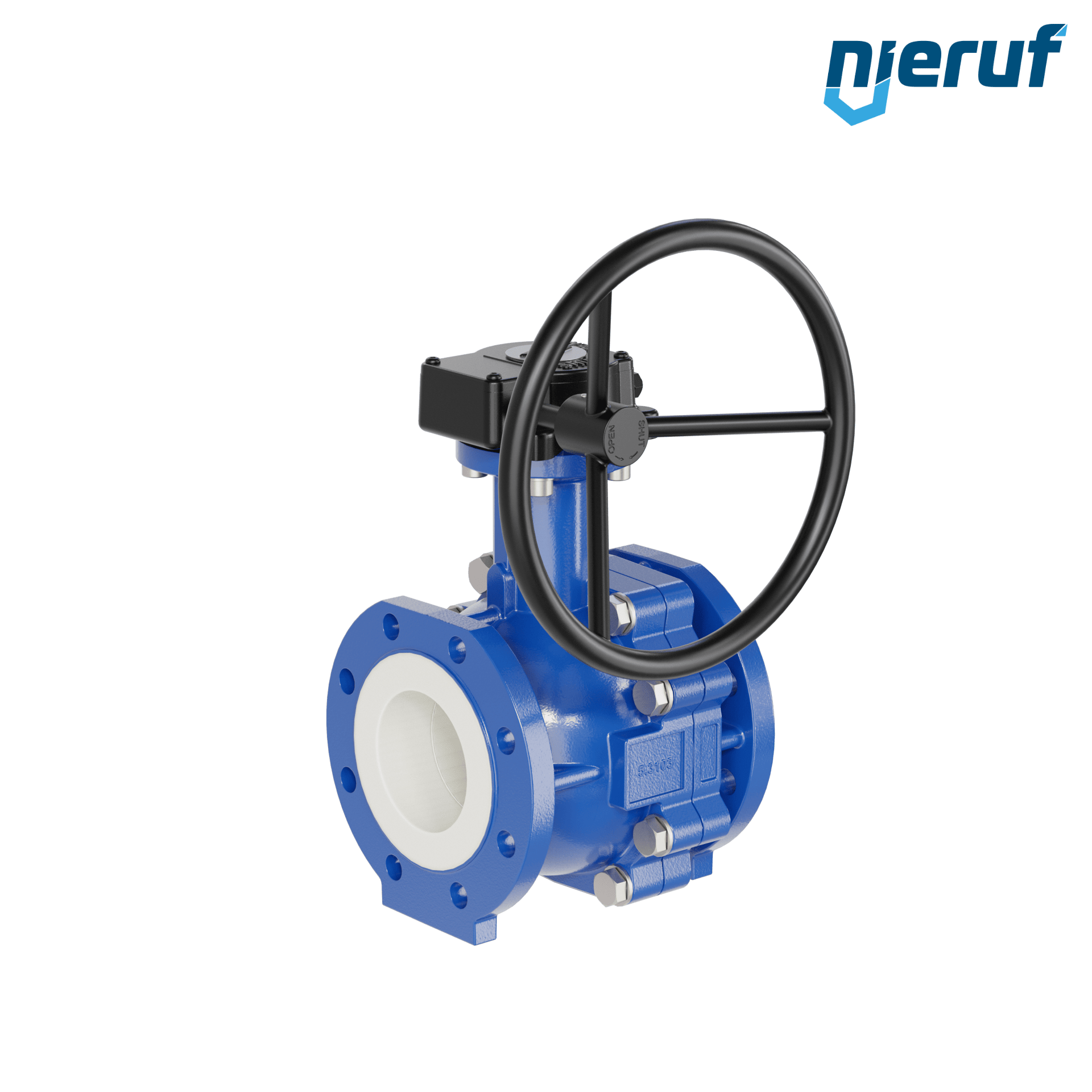

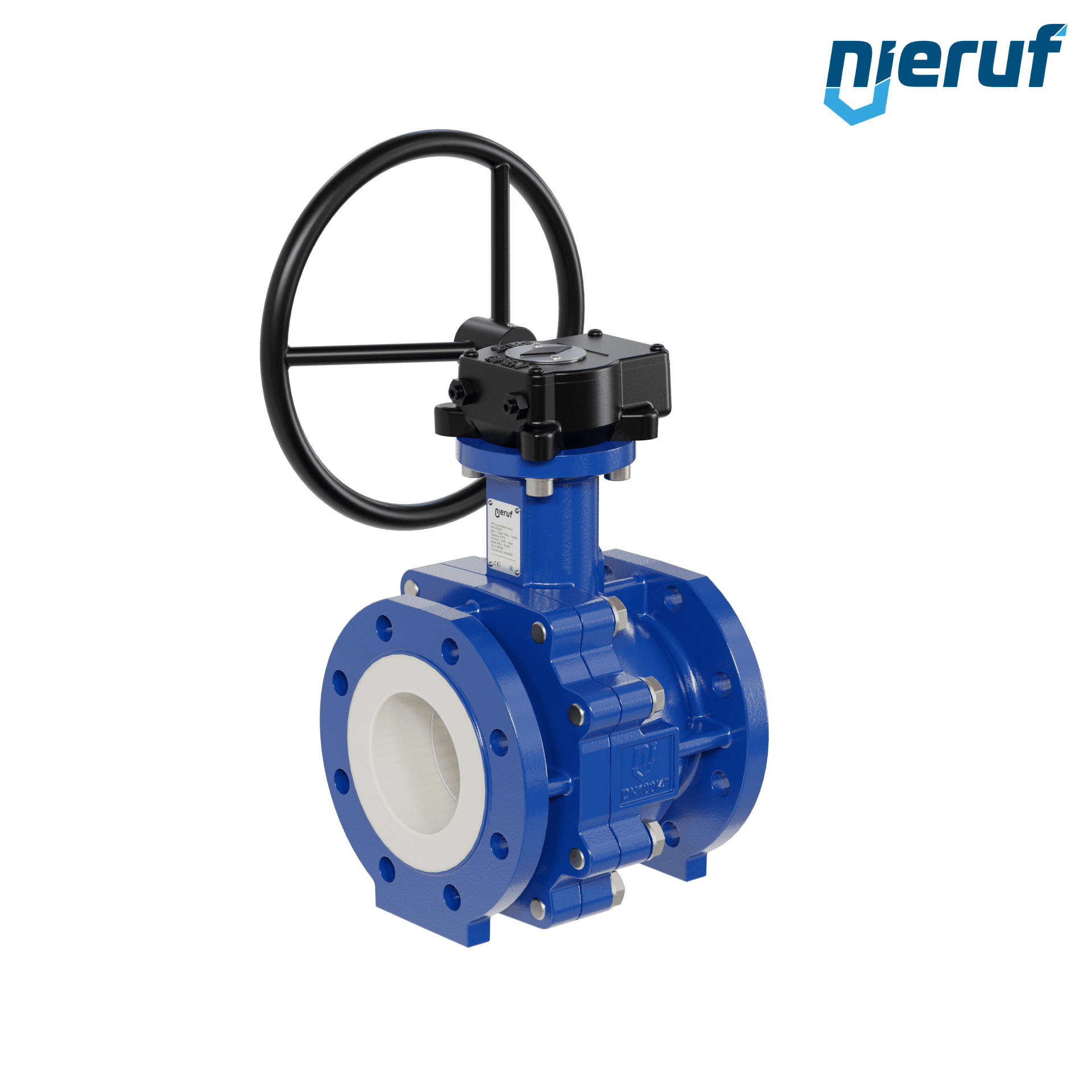

PFA-flange ball valve FK13 DN100 ANSI 150 body spheroidal graphite cast iron 5.3103 ball PFA seal PTFE for liquid, gaseous and aggressive media with worm gear

product:	PFA-flange ball valve
type:	FK13
manufacturer:	NieRuf
diameter:	DN100 - 4" inch
connection:	flange dimensions acc. to ANSI150
Seal steam:	PTFE
ball seal:	PTFE
media:	liquid, gaseous and aggressive media
temperature:	-20°C up tp +200°C
max. pressure:	ANSI 150
design:	full port design
body material:	spheroidal graphite cast iron 5.3103
lining:	PFA
ball material:	PFA
length:	ASME B16.10
actuator:	worm gear made of cast iron
installation position:	any position
authorized for:	TA Luft
product description:	This high-quality PFA ball valve is suitable for aggressive media up to 200°C. Thanks to the patented technology, age-related wear is prevented. The PFA coating protects the movable metallic connection between the ball core and the shaft.

Expand Collapse

Bei Bestellung ab einem Warenwert von 3.000,– Euro erhalten Sie von uns einen Rabatt von 5%.

Jetzt Rabattcode einlösen!

XY12349876Z

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

PFA-flange ball valve FK13 DN100 - 4" inch ANSI 150 made of spheroidal graphite cast iron with worm gear

Article no. : FK13011011
product:
type:
manufacturer:
diameter:
connection: dimensions acc. to ANSI150
Seal steam:
ball seal:
media: gaseous and aggressive media
temperature:
max. pressure:
design:
body material: graphite cast iron 5.3103
lining:
ball material:
length:
actuator: gear made of cast iron
installation position:
authorized for:
product description: high-quality PFA ball valve is suitable for aggressive media up to 200°C. Thanks to the patented technology, age-related wear is prevented. The PFA coating protects the movable metallic connection between the ball core and the shaft.
