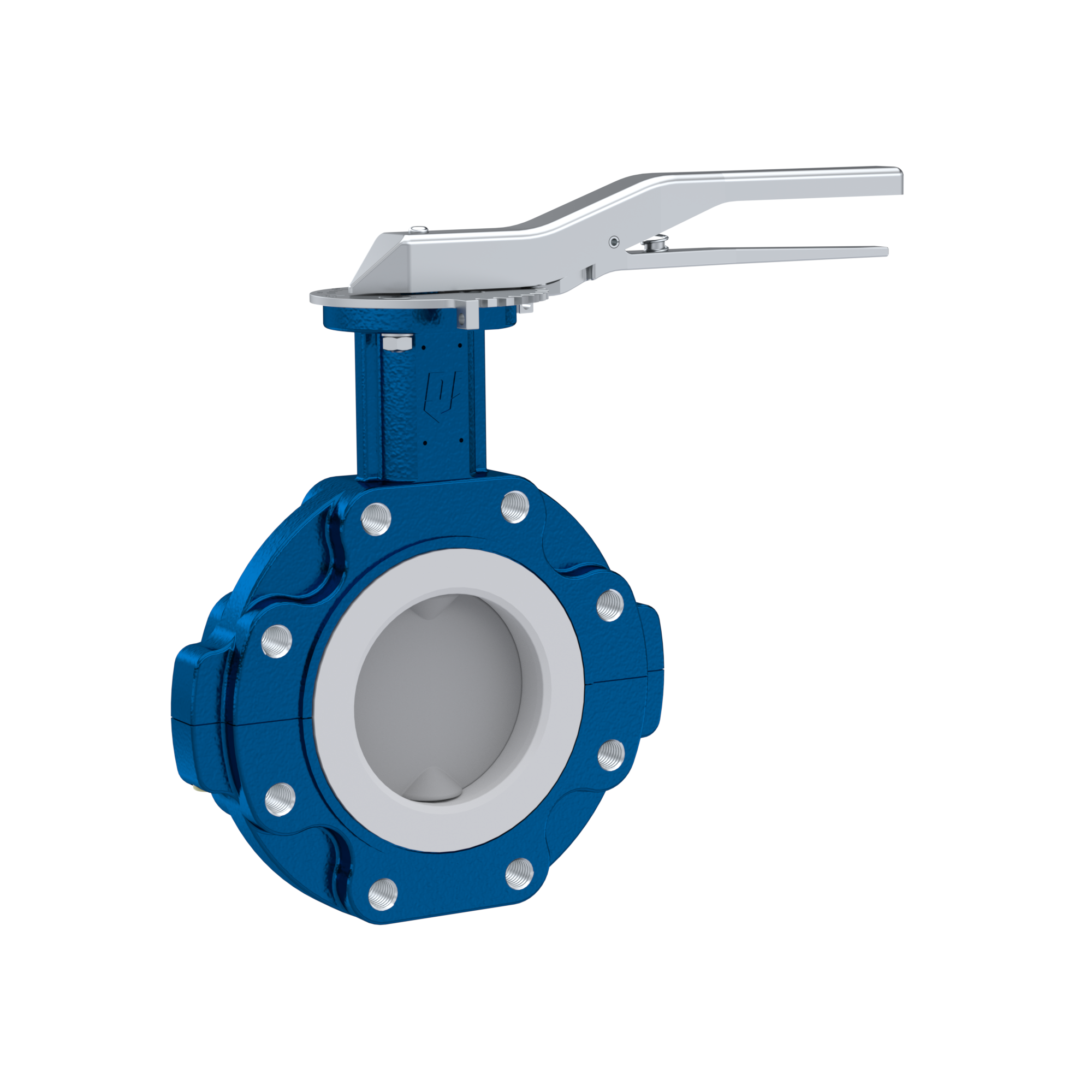

PFA-Butterfly-valve DN150 ANSI150 Lug type with lever seal made of PTFE and silicone insert for aggressive media

product:	PFA-Butterfly-valve
type:	AK10
manufacturer:	NieRuf
diameter:	DN150
nominal pressure:	ANSI150
max. working pressure:	10 bar
sleeves:	PTFE
media:	liquid, gaseous and aggressive media
temperature:	-20°C up to +200°C
design:	Lug type
body material:	ductile iron 5.3103 epoxy-coating 120μm
disc:	PFA
Insert:	silicone
actuation:	lever
application:	for extreme usage
installation position:	shaft preferably horizontal
product feature:	PFA-butterfly-valve and PTFE sleeve for aggressive media

Expand Collapse

Bei Bestellung ab einem Warenwert von 3.000,– Euro erhalten Sie von uns einen Rabatt von 5%.

Jetzt Rabattcode einlösen!

XY12349876Z

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

PFA-Butterfly-valve PTFE AK10 DN150 ANSI150 lever silicone insert

Article no. : AK10320013
product: PFA-Butterfly-valve
type: AK10
manufacturer: NieRuf
diameter: DN150
nominal pressure: ANSI150
max. working pressure: 10 bar
sleeves: PTFE
media: liquid, gaseous and aggressive media
temperature: -20°C up to +200°C
design: Lug type
body material: ductile iron 5.3103 epoxy-coating 120μm
disc: PFA
Insert: silicone
actuation: lever
application: for extreme usage
installation position: shaft preferably horizontal
product feature: PFA-butterfly-valve and PTFE sleeve for aggressive media
