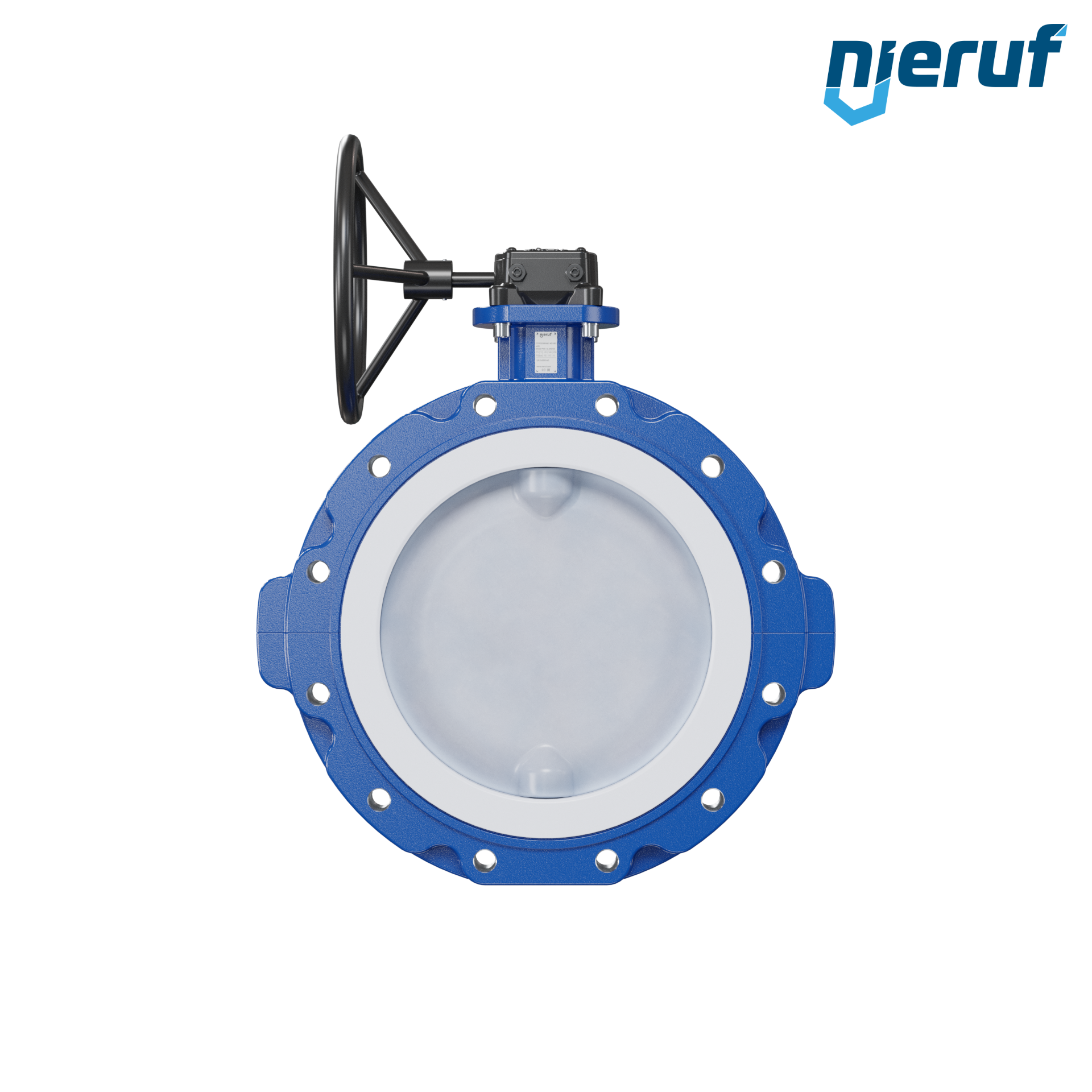

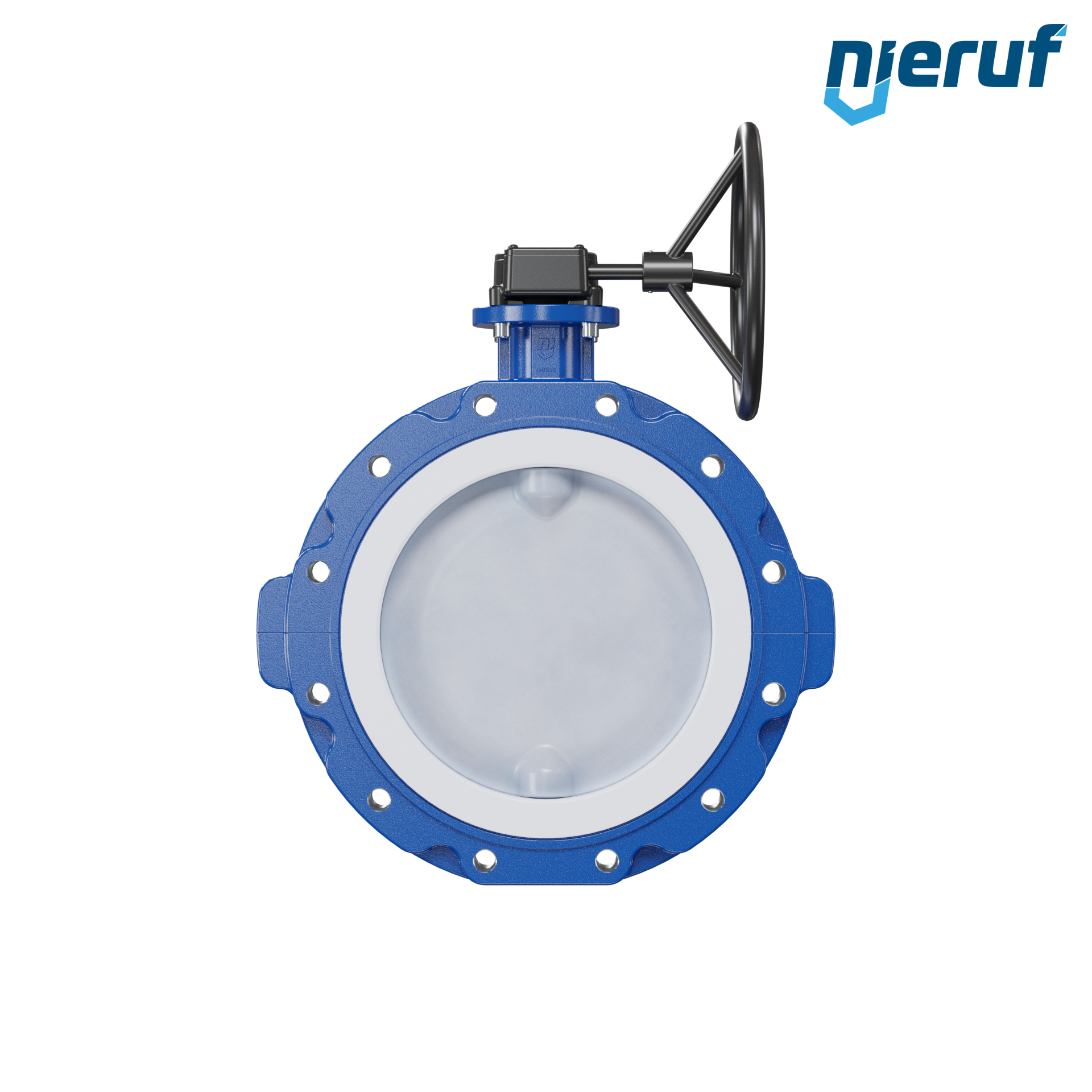

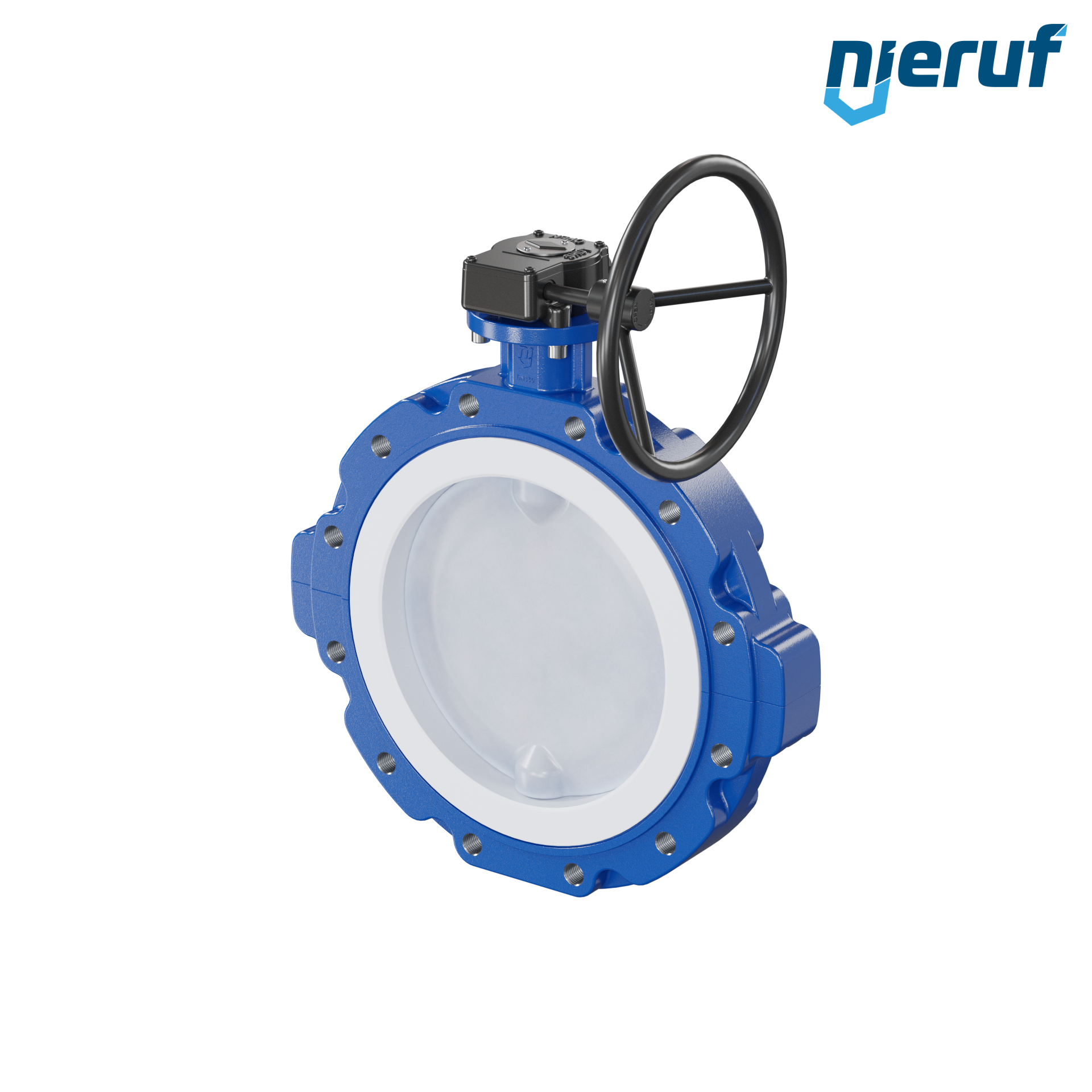

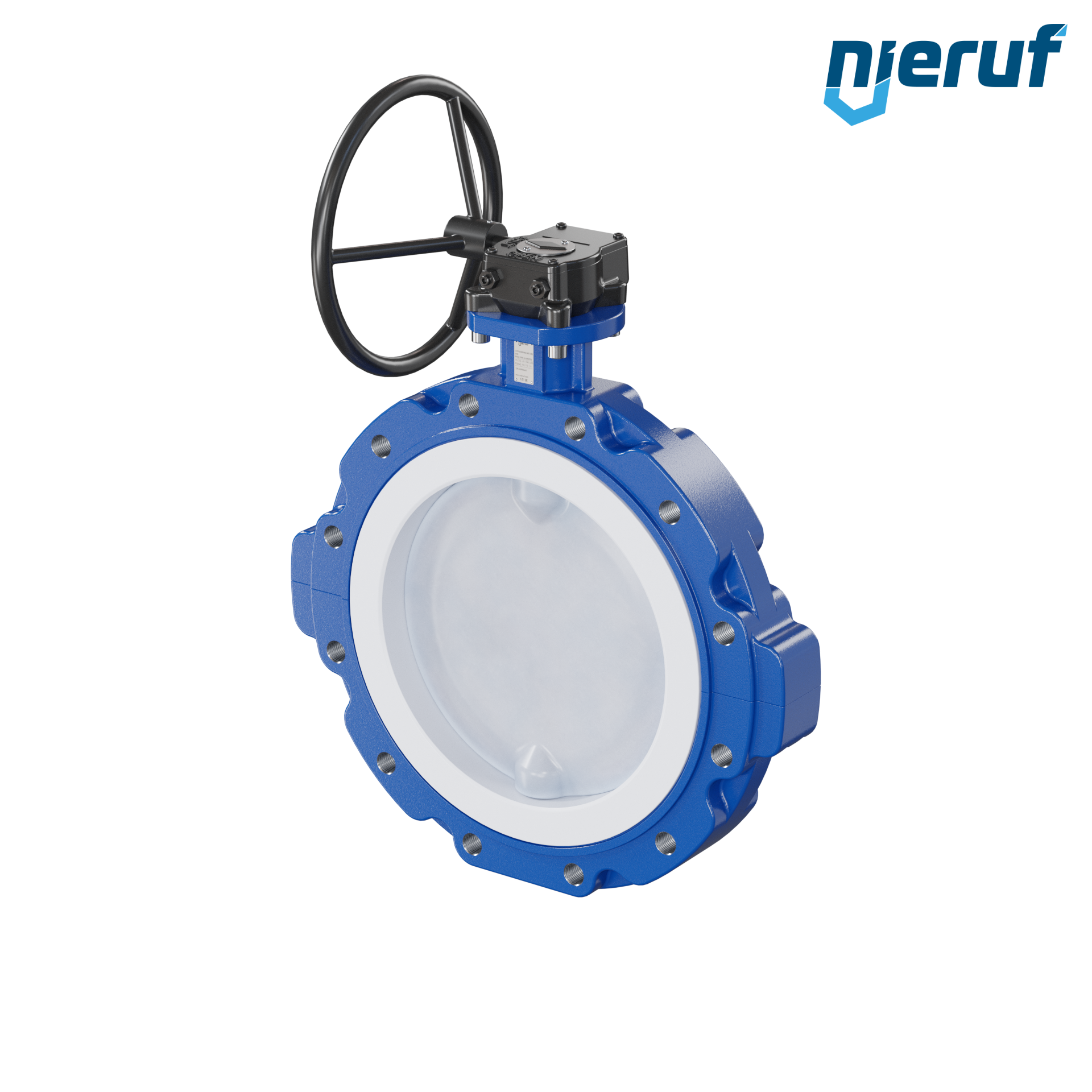

Butterfly-valve DN350 ANSI150 Lug type disc made of stainless steel 1.4404 with handwheel gearbox seal made of PTFE and EPDM insert for aggressive media
| product: | Butterfly-valve |
|---|---|
| type: | AK10 |
| manufacturer: | NieRuf |
| diameter: | DN350 |
| nominal pressure: | ANSI150 |
| max. working pressure: | 10 bar |
| sleeves: | PTFE |
| media: | liquid, gaseous and aggressive media |
| temperature: | -20°C up to +120°C |
| design: | Lug type |
| body material: | ductile iron 5.3103 epoxy-coating 120μm |
| disc: | stainless steel 1.4404 |
| Insert: | EPDM |
| actuation: | handwheel gearbox |
| application: | for extreme usage |
| installation position: | shaft preferably horizontal |
| product feature: | butterfly-valve with PTFE sleeve and stainless steel butterfly for aggressive media |
Bei Bestellung ab einem Warenwert von 3.000,– Euro erhalten Sie von uns einen Rabatt von 5%.
Jetzt Rabattcode einlösen!
XY12349876Z
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Butterfly-valve PTFE AK10 DN350 ANSI150 handwheel gearbox EPDM insert
Article no.
: AK10311117
product:
Butterfly-valve
type:
AK10
manufacturer:
NieRuf
diameter:
DN350
nominal pressure:
ANSI150
max. working pressure:
10 bar
sleeves:
PTFE
media:
liquid, gaseous and aggressive media
temperature:
-20°C up to +120°C
design:
Lug type
body material:
ductile iron 5.3103 epoxy-coating 120μm
disc:
stainless steel 1.4404
Insert:
EPDM
actuation:
handwheel gearbox
application:
for extreme usage
installation position:
shaft preferably horizontal
product feature:
butterfly-valve with PTFE sleeve and stainless steel butterfly for aggressive media
Bei Bestellung ab einem Warenwert von 3.000,– Euro erhalten Sie von uns einen Rabatt von 5%.
Jetzt Rabattcode einlösen!
XY12349876Z
No spare parts were found for the item number .
Bei Bestellung ab einem Warenwert von 3.000,– Euro erhalten Sie von uns einen Rabatt von 5%.
Jetzt Rabattcode einlösen!
XY12349876Z
AK10311117
Butterfly-valve PTFE AK10 DN350 ANSI150 handwheel gearbox EPDM insert
